RSA 8.4

The RSA connector allows data synchronization between RAC/M Identity and RSA Authentication Manager.

The connector has been tested with version 8.4. According to the RSA documentation, the connector should work with versions 8.6 and 8.7 SP2, but this has not been tested.

Jar

This configuration is based on the ICF connector rsa-8.4-1.0.0.0.jar.

Configuration

Configuration	Description	Example
securityDomain	Defines the security domain used for user authentication and authorization.	SystemDomain
userMgrPrincipal	The service account used to manage users within the specified security domain. This account has the necessary permissions to perform user management operations.	svc_rsa_admin
userMgrPwd	The service account password. This password is used to authenticate to RSA during operations.	********
namingProviderUrl	The URL of the naming provider used to establish a connection to the LDAP server or another naming service. This includes the protocol (e.g., t3s), the IP address or domain name, and the port.	t3s://xxx.xxx.xx.xxx:7002
cmdClientUser	The username of the (JNDI) client for administrative commands. This account is used to execute commands via the RSA connector.	svc_rsa_cmd
cmdClientPwd	The password associated with the command client. This password is used to authenticate the client when executing administrative commands.	********
cmdClientProviderURL	The URL of the provider for administrative commands. This includes the protocol, the IP address or domain name, and the port used for administrative communications.	t3s://xxx.xxx.xx.xxx:7022
imsSslClientIdentityKeystoreFileName	The path RAC\M ICF to the keystore file containing the client's RSA SSL identity (https RSA Certificate). This file stores the certificates required to establish a secure SSL connection.	D:/RACM Identity/ICF/security/keystore.jks
imsSslClienIdentityKeyAlias	The alias of the RSA SSL identity key in the keystore. This alias specifically identifies the private key used by the SSL client for authentication.	client_key_alias
imsSslClientRootCaAlias	The alias of the root CA used to validate the server's RSA SSL certificate. This ensures that the SSL connection is established with a trusted server.	rsa_am_ca
rsaSslClientIdKeyPwd	The password for the RSA SSL identity key. This password protects the private key used for SSL authentication.	********
rsaSslClientIdStorePwd	The password for the keystore containing the RSA SSL identity. This password protects the entire keystore where the SSL certificates are stored.	********
IdentitySourceName	The name of the identity source used to synchronize user data. It's RSA internal user.	Internal Database

Note

The parameters imsHttpinvokerClientProviderUrl and imsSslClientProviderUrl are not used by RAC/M Identity, even though they are present in the connector configuration.

Certificate

Addition

Add the root and RSA certificate to the ICF truststore with the correct alias. Suggested aliases are "rsa-ca" and "rsa" respectively, but any alias can be used.

Alias

The connector provides access to a variable alias. This is used to load the certificates into the ICF connector.

• imsSslClientIdentityKeyAlias = client_key_alias
• imsSslClientRootCaAlias = rsa_am_ca

Restart

When making changes to the truststore or the connector configuration, restarting the RACM service is mandatory.

Test

You can test the RSA ICF connector by using the TEST button. A rsa-config.properties file will be generated at the root of RACM installation folder after the connection test. It could be used to debug the connection if necessary.

Example

Here is an example of configuring an RSA ICF connector

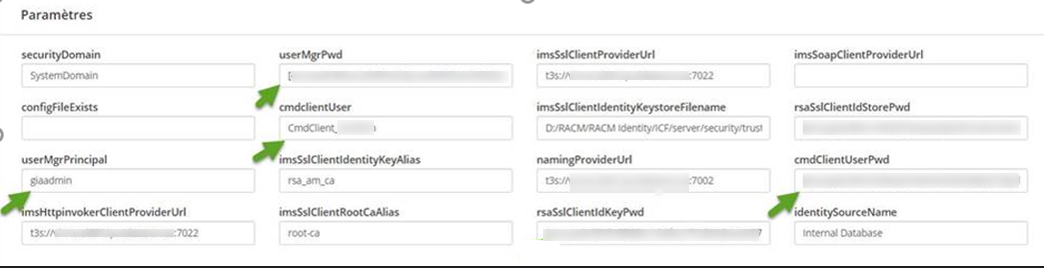

Configuration

Import

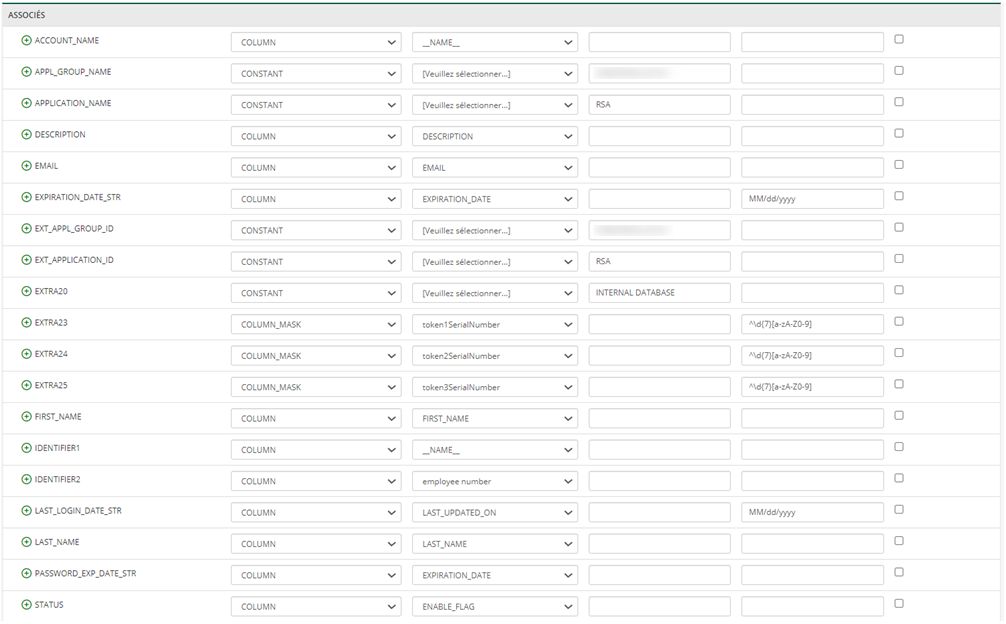

Account Mapping

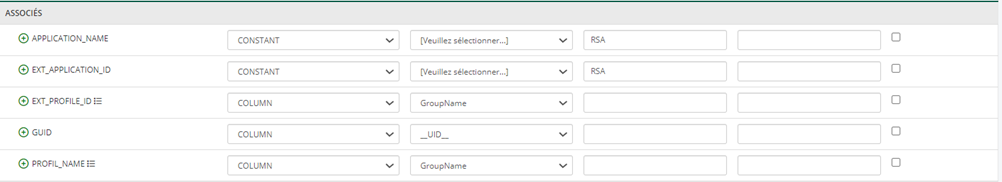

Group Mapping

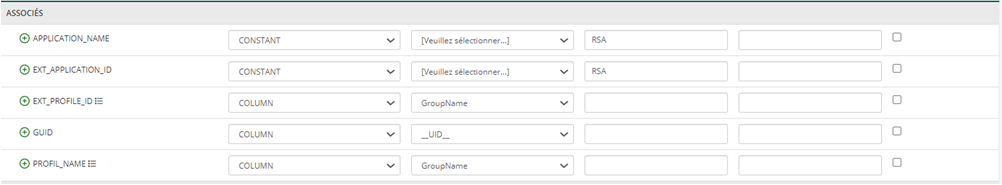

Member Mapping

Materialization

The materialization of the RSA ICF connector

Modify / Create

No example

Activate

No example

Terminate

No example

Deactivate

No example

Provisioning

Provisioning of the RSA ICF connector

Account Provisioning

No example

Group Provisioning

No example
