Configuring OpenID Connect with Salesforce

This guide describes the steps necessary to use Salesforce as an Identity Provider for S-Filer Portal. You need to be administrator of your Salesforce instance to configure OpenID Connect.

Step 1 - Connect to the Salesforce console

• Log in to your Salesforce console
  • The URL varies depending on the environment

Step 2 - Create a new "Connected App"

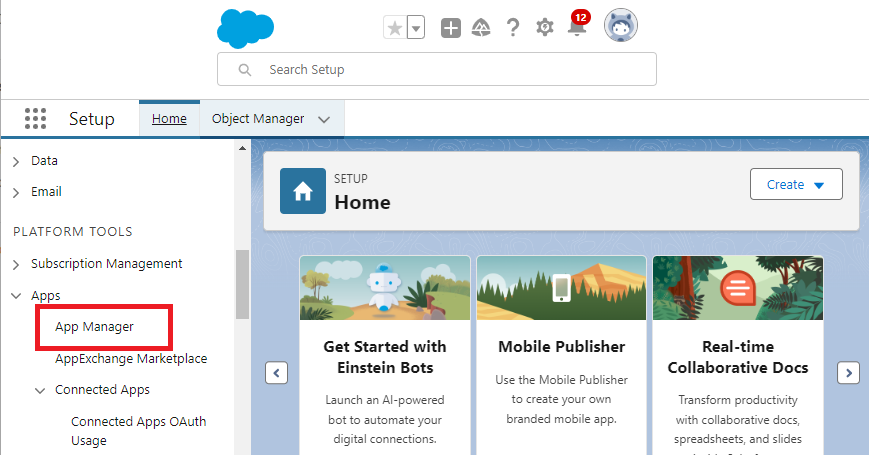

• Select App Manager from the left hand menu

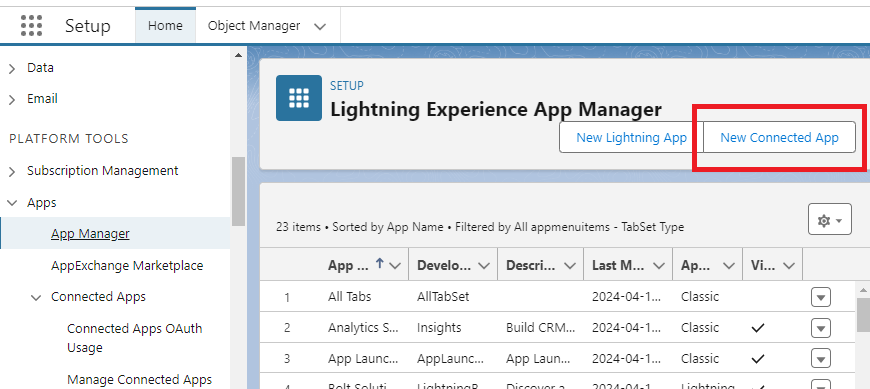

• Click on New Connected App

• Enter a Connected App Name, it should be any name that allows you to recognize that it is related to S-Filer Portal
• Enter an API Name, only letters and numbers are allowed with lots of restrictions (e.g SFILER)
• Enter a Contact Email

Step 3 - Configure OpenID Connect settings

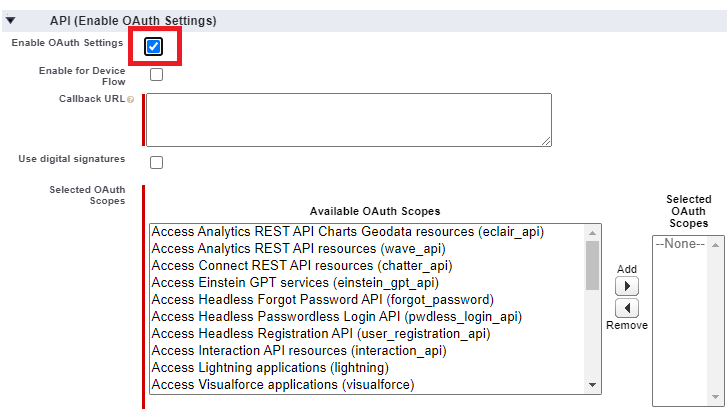

• Select Enable OAuth Settings

• In Callback URL, enter the domain name of S-Filer Portal followed by /sfiler/LoginOpenIdConnectCallback.action as the "redirect URI"
  • Ex: https://[YOUR.SFILER-DOMAIN.COM]/sfiler/LoginOpenIdConnectCallback.action
  • This URL comes from the environment on which S-Filer Portal is running
  • It should be a public URL that is accessible to users who want to use the OpenID Connect functionality
• In Selected OAuth Scopes, select the following scopes:
  • Access the identity URL service (id, profile, email, address, phone)
  • Access unique user identifiers (openid)
• Remove the check from Require Proof Key for Code Exchange (PKCE) Extension for Supported Authorization Flows
• Click Save

Step 4 - Retrieve information to configure S-Filer Portal

• Select App Manager from the left hand menu

• Find the application using the name you specified in step 2

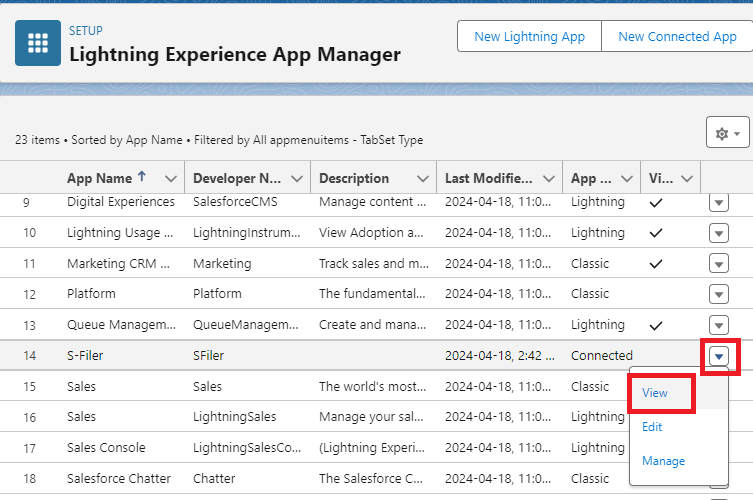

• Click on the triangle menu on the right of this application
• Click on View

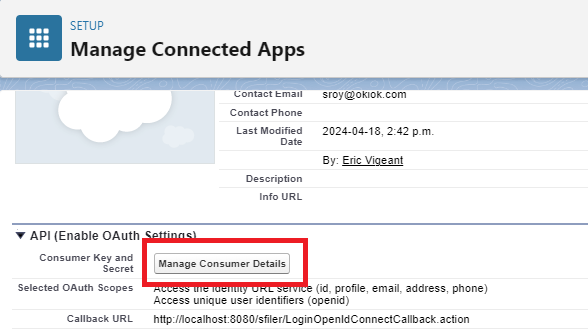

• Click on Manage Consumer Details

• A new browser window opens asking to verify the identity by entering a code sent to your email address

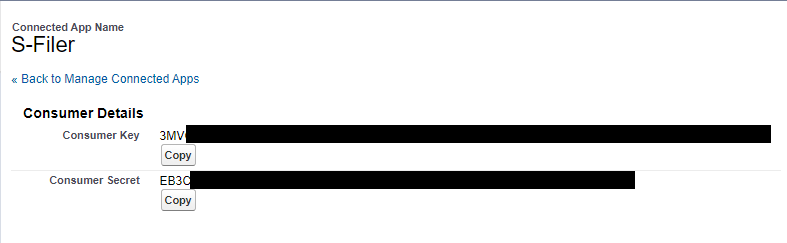

• After verification, the Consumer Details are shown

• These information will be required in step 3 of the S-Filer Portal configuration
• Copy the Consumer Key, it is the Client Identifier in S-Filer Portal
• Copy the Consumer Secret, it is the Client Secret in S-Filer Portal
• For Salesforce, the Metadata URL is constructed as follows: https://[YOUR SALESFORCE DOMAIN]/.well-known/openid-configuration

Next steps

• Configure S-Filer Portal with these information S-Filer Portal OpenID Connect Configuration
